Neural Network -  Pereceptron - NOR Logic

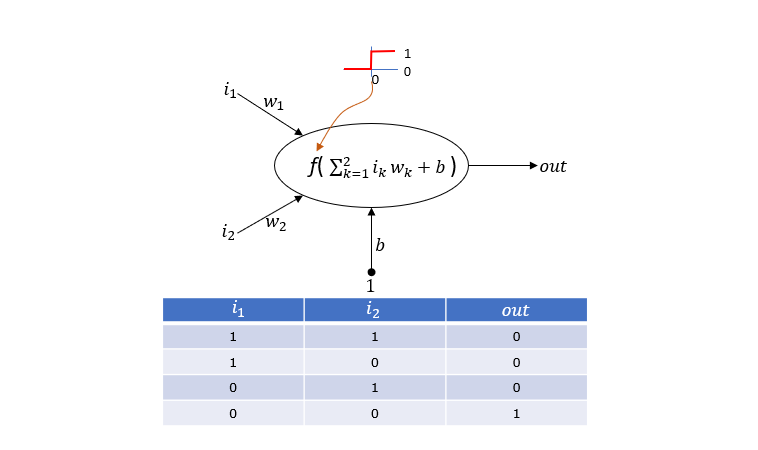

This note is to show the process of a Perceptron learning the logic of AND gate. Main purpose of this note is to show you the all iterations from the beginning until it completes the learning, so you can try your own calculation with pen and paper and verify your calculation.

If you are not familiar with neural network and perceptron, you may refer to my descriptive note here.

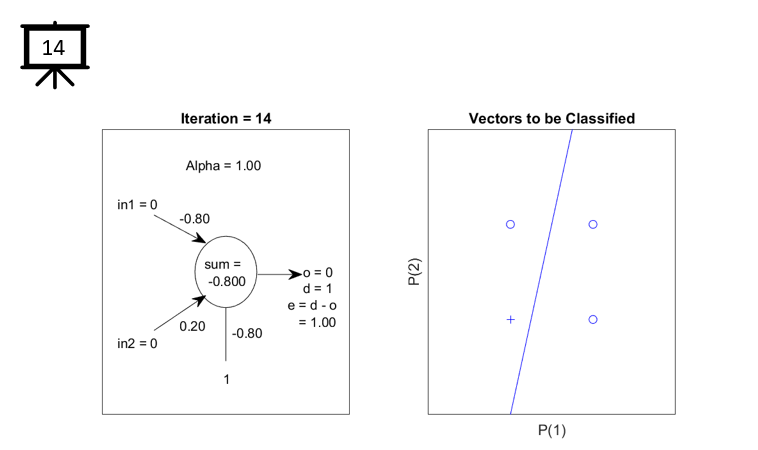

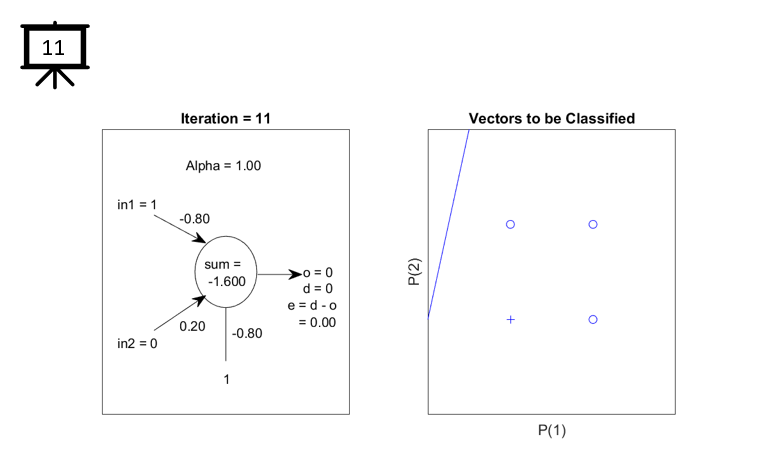

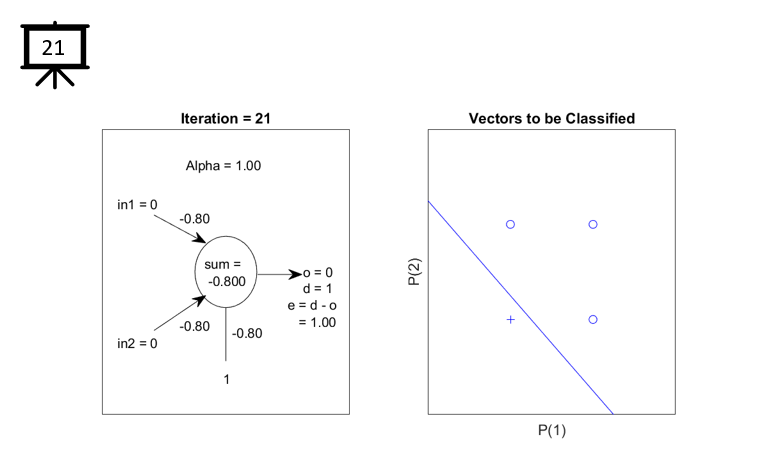

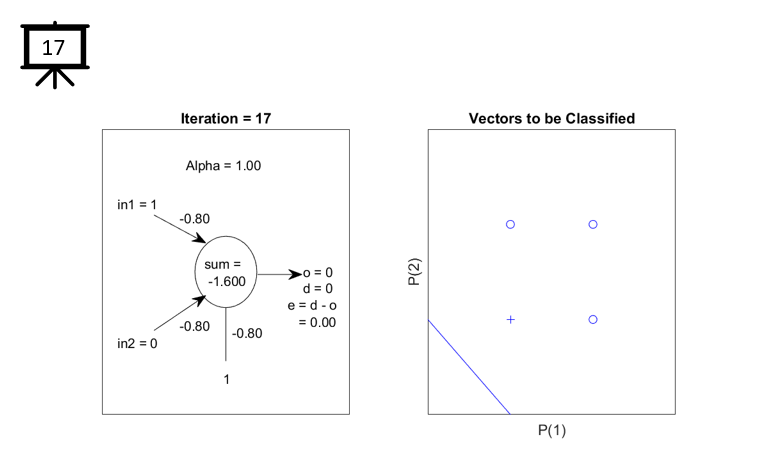

Followings are the code that I wrote in Deep Learning Toolbox (2019b)  to creates all the plots shown in this page. You may copy these code and play with these codes. Change variables and try yourself until you get your own intuitive understanding.

< Code 1 >

net = perceptron;

net = configure(net,[0;0],0);

net.b{1} =  [0.2];

w = [0.2 0.2];

net.IW{1,1} = w;

alpha = 1.0;

pList = [1 1 0 0; 1 0 1 0];

%tList = [1 0 0 0]; % AND

%tList = [1 1 1 0]; % OR

tList = [0 0 0 1]; % NOR

figure(1);

set(gcf, 'Position', [200, 200, 740, 350])

set(gcf,'color','w');

subplot(1,2,2);

plotpv(pList,tList);

rng(1);

sList = randi([1 4],[1,100]);

for i = 1:60

    si = sList(i);

    p = pList(:,si);

    t = tList(si);

     a = net(p);

    %------------------------------------

    subplot(1,2,1);

    th = 0:pi/20:2*pi;

    plot(4+cos(th),4+sin(th),'k-');

    axis([0,8,0,8]);

    set(gca,'xticklabel',[]);

    set(gca,'yticklabel',[]);

    set(gca,'xtick',[]);

    set(gca,'ytick',[]);

    tStr = sprintf("Iteration = %d",i);

    title(tStr);

    w1_ax = [0.2 0.27];

    w1_ay = [0.68 0.6];

    annotation('textarrow',w1_ax,w1_ay,'String','');

    w2_ax = [0.2 0.27];

    w2_ay = [0.35 0.45];

    annotation('textarrow',w2_ax,w2_ay,'String','');

    b_x = [4 4];

    b_y = [1.5 3];

    line(b_x,b_y,'color','black');

    o_ax = [0.34 0.4];

    o_ay = [0.51 0.51];

    annotation('textarrow',o_ax,o_ay,'String','');

    alphaStr = sprintf("Alpha = %0.2f",alpha);

    text(2.7,7.0,alphaStr);

    in1 = p(1);

    inStr1 = sprintf("in1 = %d",in1);

    text(0.5,5.9,inStr1);

    in2 = p(2);

    inStr2 = sprintf("in2 = %d",in2);

    text(0.5,2.0,inStr2);

    bStr = sprintf("1");

    text(3.9,1.0,bStr);

    b=net.b{1};

    bStr = sprintf("%0.2f",b);

    text(4.2,2.3,bStr);

    w1 = net.IW{1,1}(1);

    w1Str = sprintf("%0.2f",w1);

    text(2.5,5.5,w1Str);

    w2 = net.IW{1,1}(2);

    w1Str = sprintf("%0.2f",w2);

    text(2.5,2.5,w1Str);

    s = in1*w1 + in2*w2 + b;

    sStr = sprintf("sum = \n %0.3f",s);

    text(3.3,4,sStr);

    o = a;

    oStr = sprintf("o = %d",o);

    text(6.5,4.0,oStr);

    d = t;

    dStr = sprintf("d = %d",d);

    text(6.5,3.55,dStr);

    e = d-o;

    eStr = sprintf("e = d - o \n   = %0.2f",e);

    text(6.0,2.85,eStr);

    %------------------------------------

    subplot(1,2,2);

    plotpv(pList,tList);

    axis([-1 2 -1 2]);

    set(gca,'xticklabel',[]);

    set(gca,'yticklabel',[]);

    set(gca,'xtick',[]);

    set(gca,'ytick',[]);

    fprintf("\n----------- %d th iternation ---------------\n",i);

    fprintf("[%d %d] => %d\n",p(1),p(2),t(1));

    %a = net(p);

    fprintf("a = %f\n",a);

    e = t-a;

    fprintf("e = %f\n",e);

    dw = learnp(w,p,[],[],[],[],e,[],[],[],[],[]);

    fprintf("dw = [%f %f]\n",dw(1),dw(2));

    net.b{1} = net.b{1} + alpha*e;

    w = w + alpha*dw;

    fprintf("w next = [%f %f], b next = %f\n",w(1),w(2),net.b{1});

    net.IW{1,1} = w;

    plotpc(net.IW{1,1},net.b{1});

    pause(1);

    fname = sprintf("%s/temp/PerceptronNOR_%02d.png",pwd,i);

    %saveas(gcf,fname);

end;

fprintf("\n----------- Evaluate the Net ---------------\n");

net(pList)
